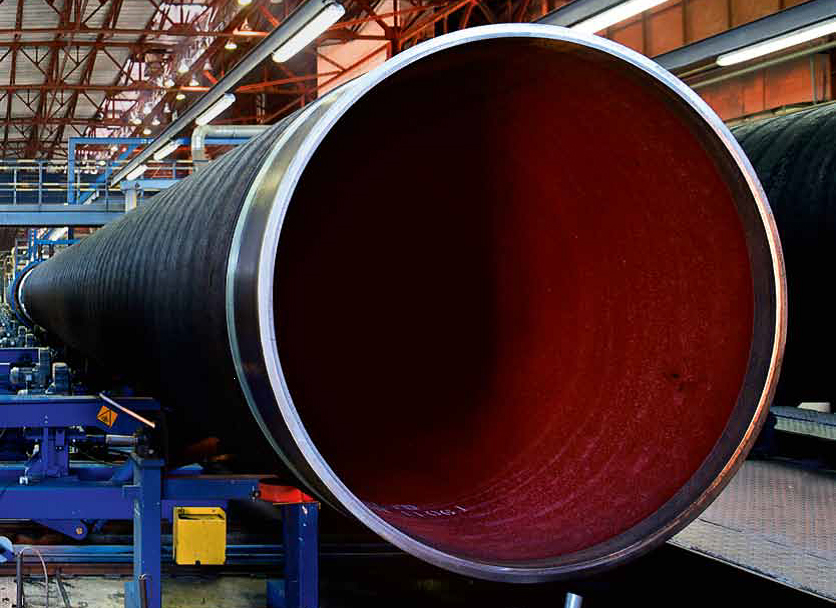

LSAW Pipes

Grade-S275JOH, S355J2H/JOH

Standard: EN10219 & EN10210

Pipe Diameter Range : 9″ – 60″

Wall Thickness: 6 – 50mm

Length: 12M

  • High Strength
  • High Toughness
  • Anti Sour
  • High Reliability of Weld

Water Line Pipe  |  Pipe for General Structural Use

Technical Details LSAW Pipe

Chemical Composition

Grade C SI MN P S N CEV
S235JRH
0.17
-
1.4
0.040
0.040
0.009
0.35
S275JOH
0.20
-
1.5
0.035
0.035
0.009
0.40
S275J2H
0.20
-
1.5
0.030
0.030
-
0.40
S355JOH
0.20
0.55
1.6
0.035
0.035
0.009
0.45
S355J2H
0.20
0.55
1.6
0.030
0.030
-
0.45

Mechanical Composition

Grade Yield Strength (Min) Tensile Strength (Thk<3MM) Tensile Strength (Thk>3MM) Elongation% (Min) Min Impact Energy (-20) Min Impact Energy (0) Min Impact Energy (CEV)
S235JRH
235
360-510
360-510
24
-
-
27
S275JOH
275
430-580
410-560
20
-
27
-
S275J2H
275
430-580
410-560
20
27
-
-
S355JOH
355
510-680
470-630
20
-
27
-
S355J2H
355
510-680
470-630
20
27
-
-

Tolerance

Characteristics LSAW Pipes
Outside Diameter
+/-1 % with Mini of +/-0.5mm and Max of +/-10mm
Thickness
+/-10% with Maximum of 2MM
Out of Roundness
2% for Hollow Section having a diameter to Thk Ratio not exceeding 100
Straightness
2% of total Length and 3mm over any 1M length
Mass
+ /- 6% on individual deliverd length
